Features:
- Flashing Function: Built-in blinking IC with a 1.5Hz flash rate. No external circuitry required for flashing—plug and play.
- Emitting Color: Orange
- Wavelength range: 605–615nm, providing a vivid and eye-catching orange glow. Ideal for warning and indicator applications.
- Luminous intensity: 1500–2000 mcd, delivering strong brightness even in daylight or high-ambient-light environments.
- Wide Operating Voltage:Operates within 2.0–5.8V, allowing compatibility with a variety of power supplies.
- Rated current: 30mA, energy-efficient design suitable for battery-powered devices and long-duration use.
- Narrow Beam Angle:30° viewing angle for focused illumination and enhanced visibility from a distance.
- Lens and Package Design: Round head with flange for secure panel mounting. Clear lens ensures maximum light transmission and brightness.
- Chips: Famous Branded chips Epistar/ San'an/ EpiLEDs/ AMIC…
- Die Bonding: Branded die glues
- Wire Bonding: Gold/silver alloy wires
- Sealing Glues: High quality heat resistant glues
- Lead Frame Material: The lead frame is made of iron plated with silver (Ag).The galvanized silver layer of the stent is controlled with Japanese brand coating test equipment.
- Strict Quality Inspection Process and Reliability Tests
- Dependable High Quality Color Presentation
- Customized manufacturing Services:customized color combination, customized LED pins, customized beam angle, resistor/capacitor/IC integrating, pin cutting service, pin forming service, braiding service…
Application:
Safety warning lights
Industrial equipment status display
Instrument panel indicator lights
Electric vehicle control panel
Visual signals of car alarm systems
Bicycle taillights or turn signals
Portable flashing warning lights
Outdoor equipment warning lights
LED holiday light strings
Decorative dynamic light sources
Indoor atmosphere lighting
Technical Parameters:
| Type | Flashing LED |
| Size | 3mm |
| Peak Wavelength | 605-615nm |
| Luminous Intensity | 1500-2000mcd |
| Forward Voltage | 2.0-5.8V |
| Flash Frequency | 1.5Hz |
| Power Dissipation | 100mW |
| Beam Angle | 30 deg |
| Forward Current | 30mA |
| LED Shape | round head with flange |
| LED Lens | clear lens |
| Bond Wire | gold wire |
| Package | 1000pcs/bag |
| Stent Material | iron with plated silver |

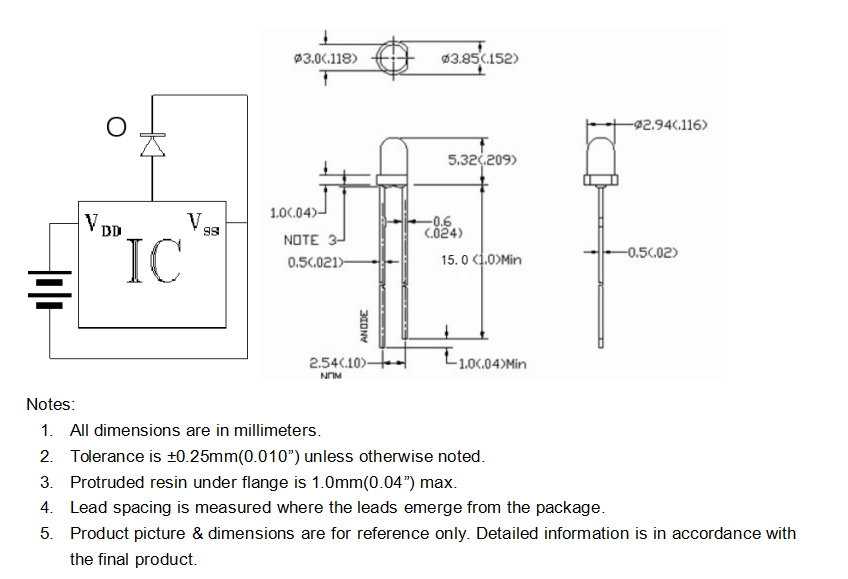

Package Dimension:

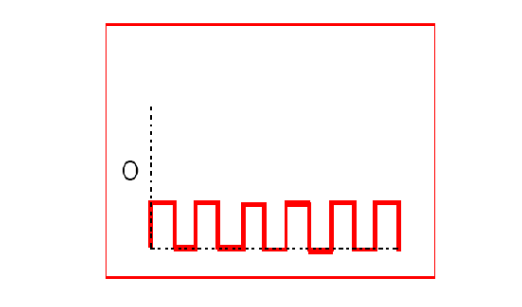

Flash Wave:
Customization:
Support and Services:
